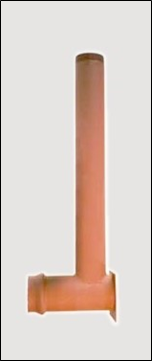

Steel vertical riser for PVC underground pipe fittings.
85 cm high above the pipe. Red paint on frame.
We can manufacture special heights on request. VBZ galvanised valve and tee welding inclused in price.
For superior height to 85 cm, an extra cost of 2 euros exclusive of VAT is applied for every 10 cm section otherwise the regular price is applied.
For seals and assembly soap please see tab "Manufacturing - Elbows fitting accessories"
For fittings and air valve referencer to category "hydrant valve and venting alu".
| Diameter | Thread | Line | Code |
|---|---|---|---|
| 90 | 1" 1/2 | sl | 15099 |
| 90 | 2" | sl | 15100 |
| 90 | 3" | sl | 15101 |
| 90 | 4" | sl | 15100bis |
| 110 | 1" 1/2 | sl | 15101bis |
| 110 | 3" | sl | 15102 |
| 110 | 4" | sl | 15103 |
| 125 | 1" 1/2 | sl | 15103bis |
| 125 | 3" | sl | 15104 |
| 125 | 4" | sl | 15105 |
| 125 | 5" | sl | 15106 |
| 140 | 1" 1/2 | sl | 15106bis |
| 140 | 3" | sl | 15107 |
| 140 | 4" | sl | 15108 |
| 140 | 5" | sl | 15109 |
| 160 | 1" 1/2 | sl | 15109bis |
| 160 | 4" | sl | 15110 |
| 160 | 5" | sl | 15111 |
| 200 | 4" | sl | 15112 |
| 200 | 5" | sl | 15113 |
| 200 | 6" | sl | 15114 |
| Diametre | Filetage | Ligne | Code |
|---|---|---|---|
| 90 | 1" 1/2 | fl | 15116bis |
| 90 | 2" | fl | 15120 |
| 90 | 3" | fl | 15121 |
| 90 | 4" | fl | 15120bis |
| 110 | 1" 1/2 | fl | 15121bis |
| 110 | 3" | fl | 15122 |
| 110 | 4" | fl | 15123 |
| 125 | 1" 1/2 | fl | 15123bis |
| 125 | 3" | fl | 15124 |
| 125 | 4" | fl | 15125 |
| 125 | 5" | fl | 15126 |
| 140 | 1" 1/2 | fl | 15126bis |
| 140 | 3" | fl | 15127 |
| 140 | 4" | fl | 15128 |
| 140 | 5" | fl | 15129 |
| 160 | 1" 1/2 | fl | 15129bis |
| 160 | 4" | fl | 15130 |
| 160 | 5" | fl | 15131 |
| 200 | 4" | fl | 15132 |
| 200 | 5" | fl | 15133 |
| 200 | 6" | fl | 15134 |
Peinture anti-rouille (prix tarif) Galvanisation (prix tarif/0.60) (préciser Galvanisé à la commande) Plascoat (prix tarif/0.60) La référence sera précédée de PLAS (exemple : PLAS15144) Epoxy (prix tarif/0.75) La référence sera précédée d'EPOXY (exemple : EPOXY15144)
